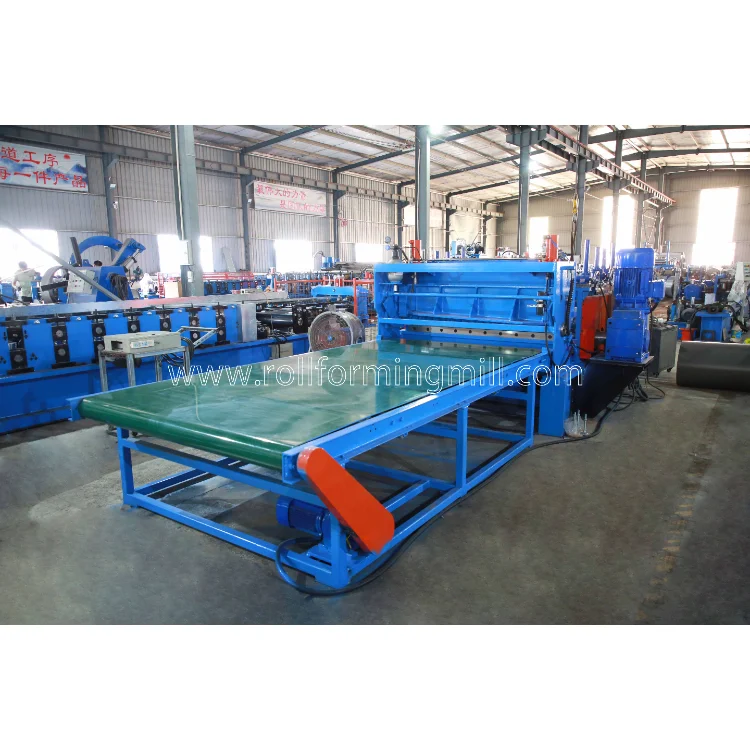

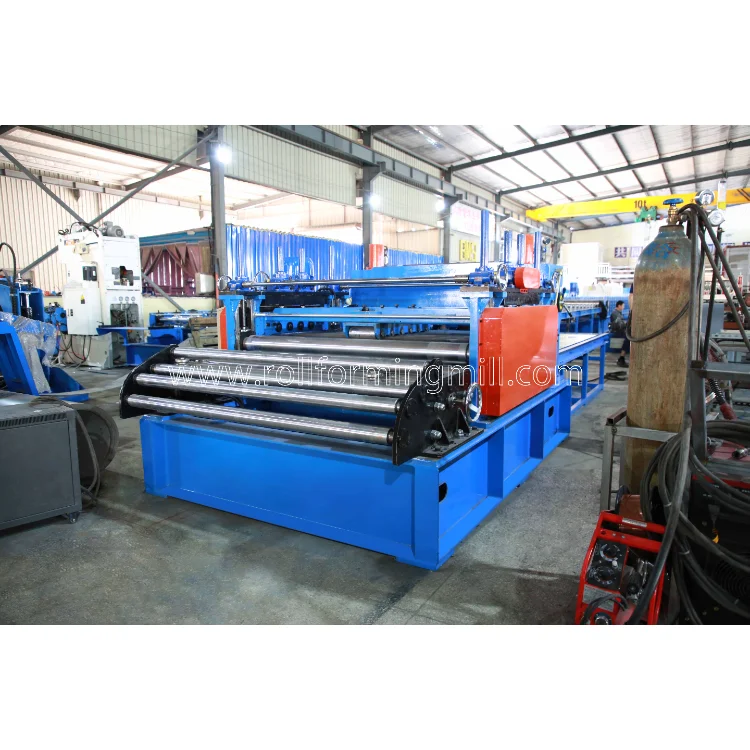

Metal Sheet Track Cutting Madium Gauge Coil Cut To Length Line with Leveling Function

Product Description

Product Name		Coil Cut To Length Line (with leveling function,Madium Gauge)

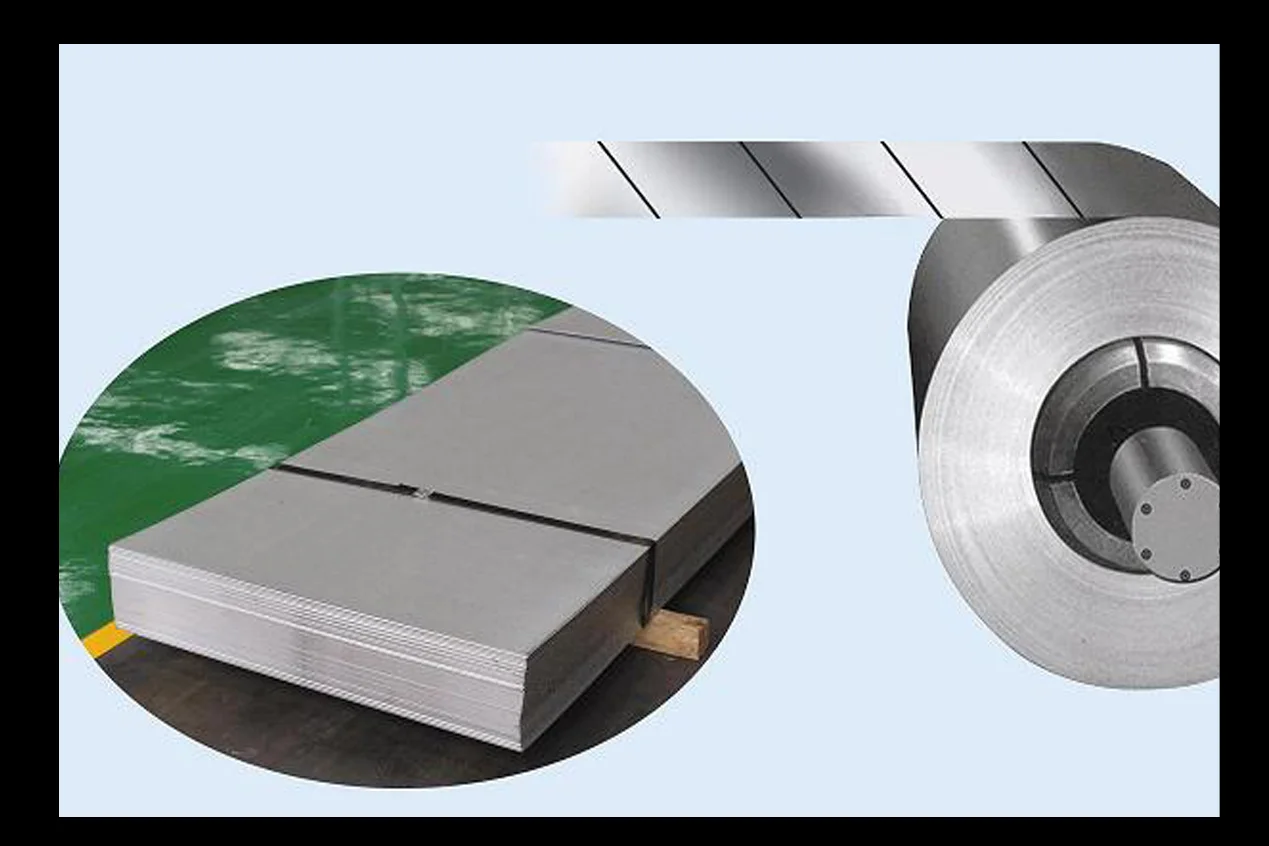

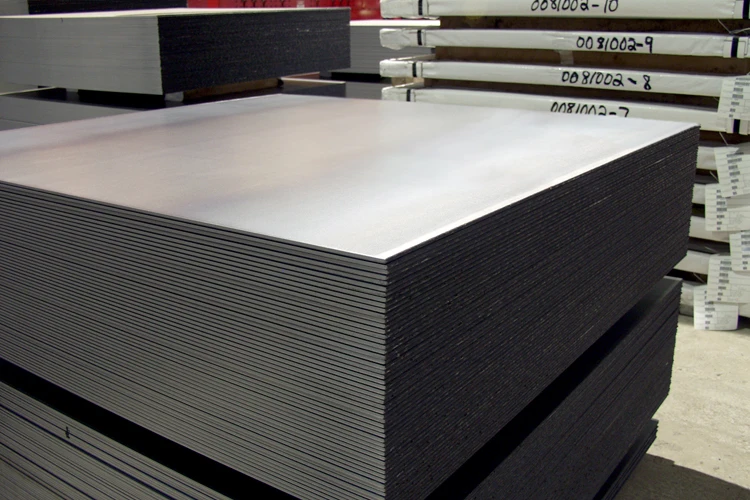

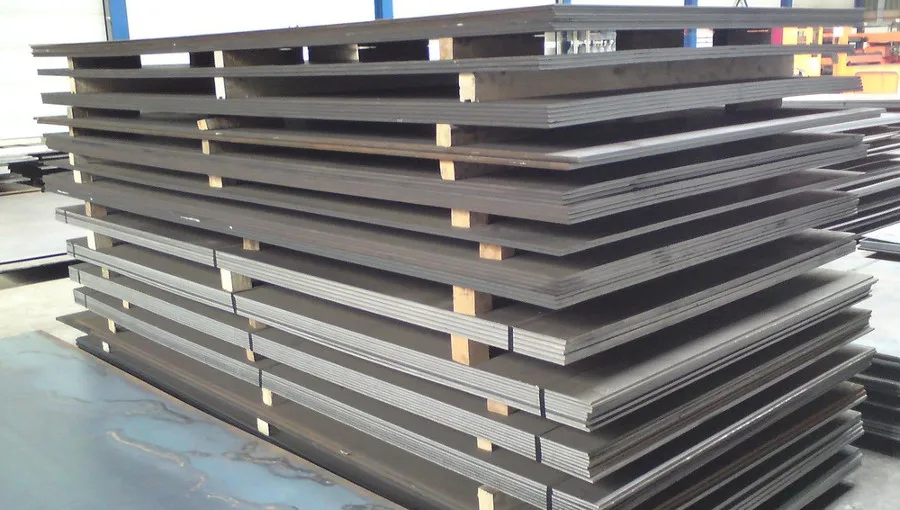

Material	Applicable material	GI(Galvanized Steel Sheet)/HR/PPGL
	Material thickness	1.0-4mm
	With yield strength	235-345-550Mpa Yield Strength
	Feeding width	1500mm
Machine	Base frame	H400-H450 type steel
	Hardness	Heat treatment to HRC52-58 degree
	Shaft diameter	75mm-80mm-90mm-100mm
	Machine size	600016001800mm
	Machine weight	5tons
	Machine color	2.Blue(RAL5015)+ orange (RAL2004), as per the seller factory’s color standard
	Working speed	15m/min
Cutter	Hardness	Heat treatment to HRC58-62 degree
	Cutting tolerance	≤±1mm
	Material	Cr12MoV(= Z200C12 with at least one million times of cutting life)
	Operate	By PLC
Power	Driving way	Gear/Sprocket transmission,

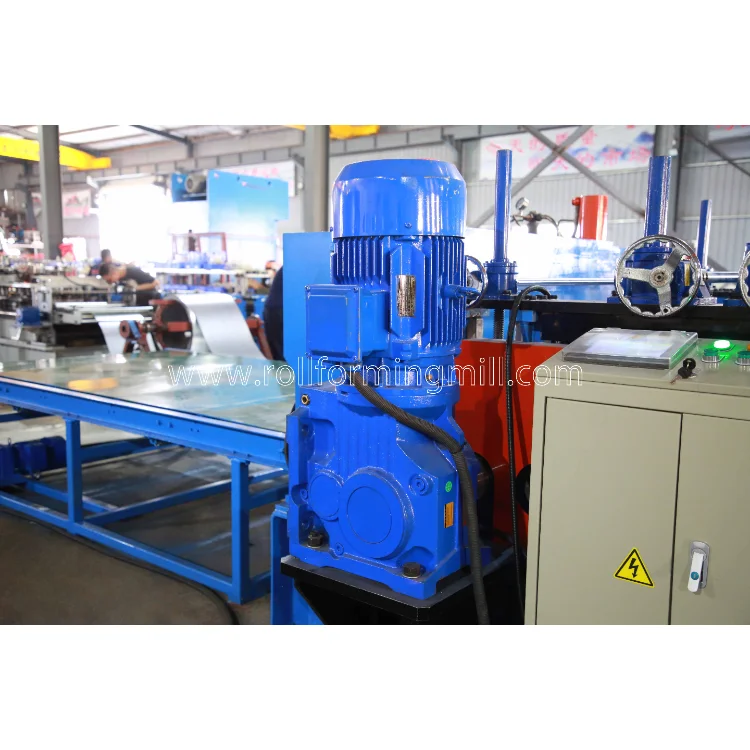

	Main motor	15-18.5-22KW

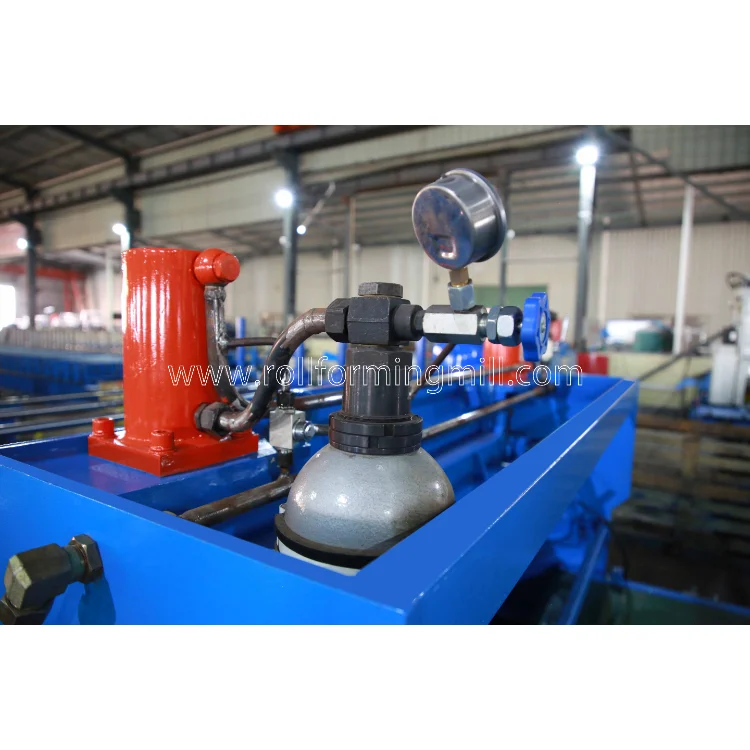

	Pump motor for cutter	5.5kw-7.5kw
	Voltage	220/380/415/480V- 60/50Hz/3Ph --should be confirmed
PLC Control System	Inverter	Schneider Electric/Siemens/DELTA (Taiwan brand)
	Touch screen	Schneider Electric/Siemens/WEINVIEW(Taiwan brand)
	Encoder	OMRON (Japan brand) or KOYO (Japan brand)
	Cut-to-length tolerance	≤±1mm
	Control voltage	24V

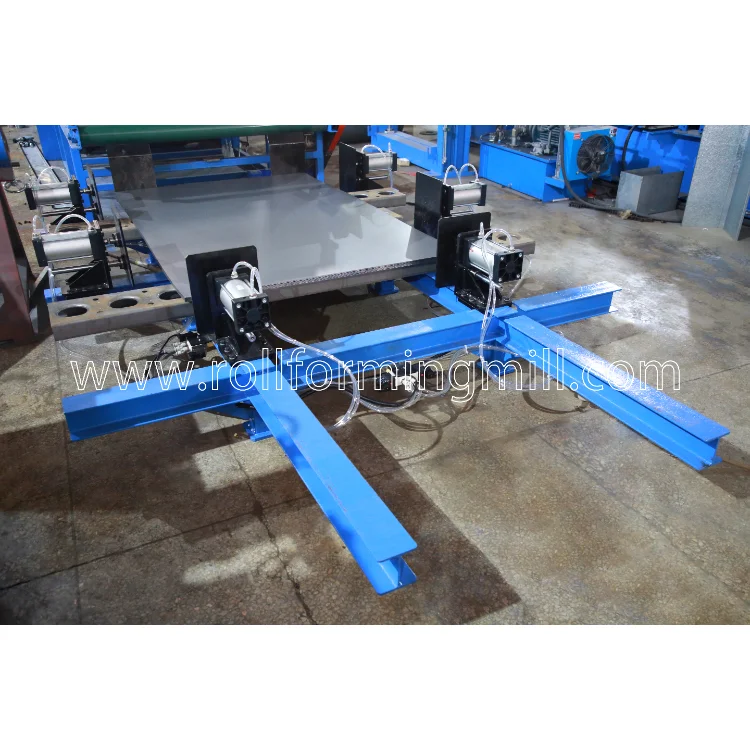

Automatic Stacker and Printer		Options
