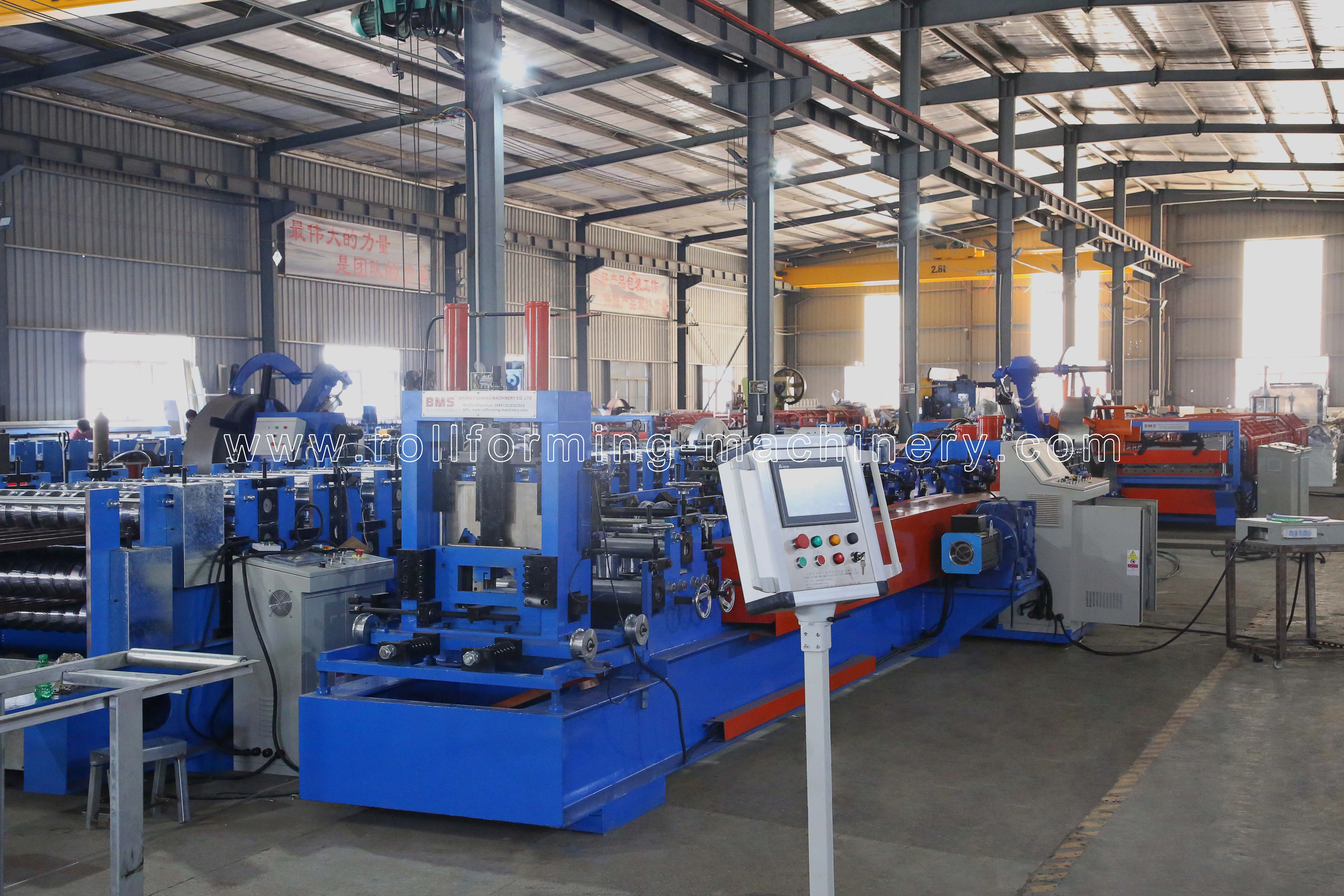

Automatic Manufacture Metal Sheet Roof Panel Tile C Type Light Keel Making Machine/c Roll Forming Form Purlin Machine

Product Description

Product Name		Automatic C Purlin Roll Forming Machine
Material	Applicable material	GI(Galvanized Steel Sheet)/HR/PPGL
	Material thickness	1.0-3.0mm
	With yield strength	235-345-550Mpa Yield Strength
Machine	Base frame	H400-H450 type steel

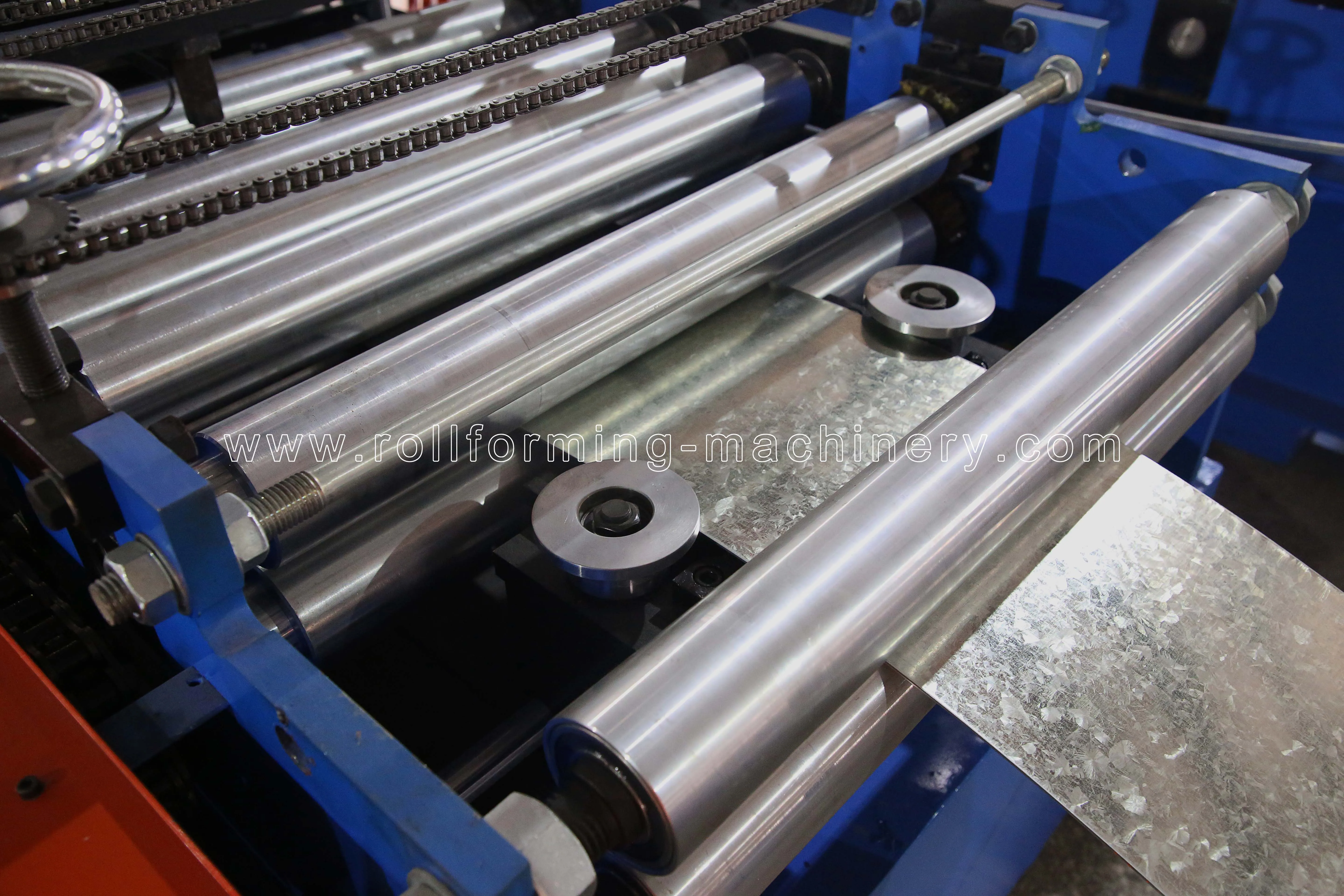

	Roller material	bearing steel GCr15 with hard chrome coating or mold steel Cr12
	Hardness	Heat treatment to HRC52-58 degree

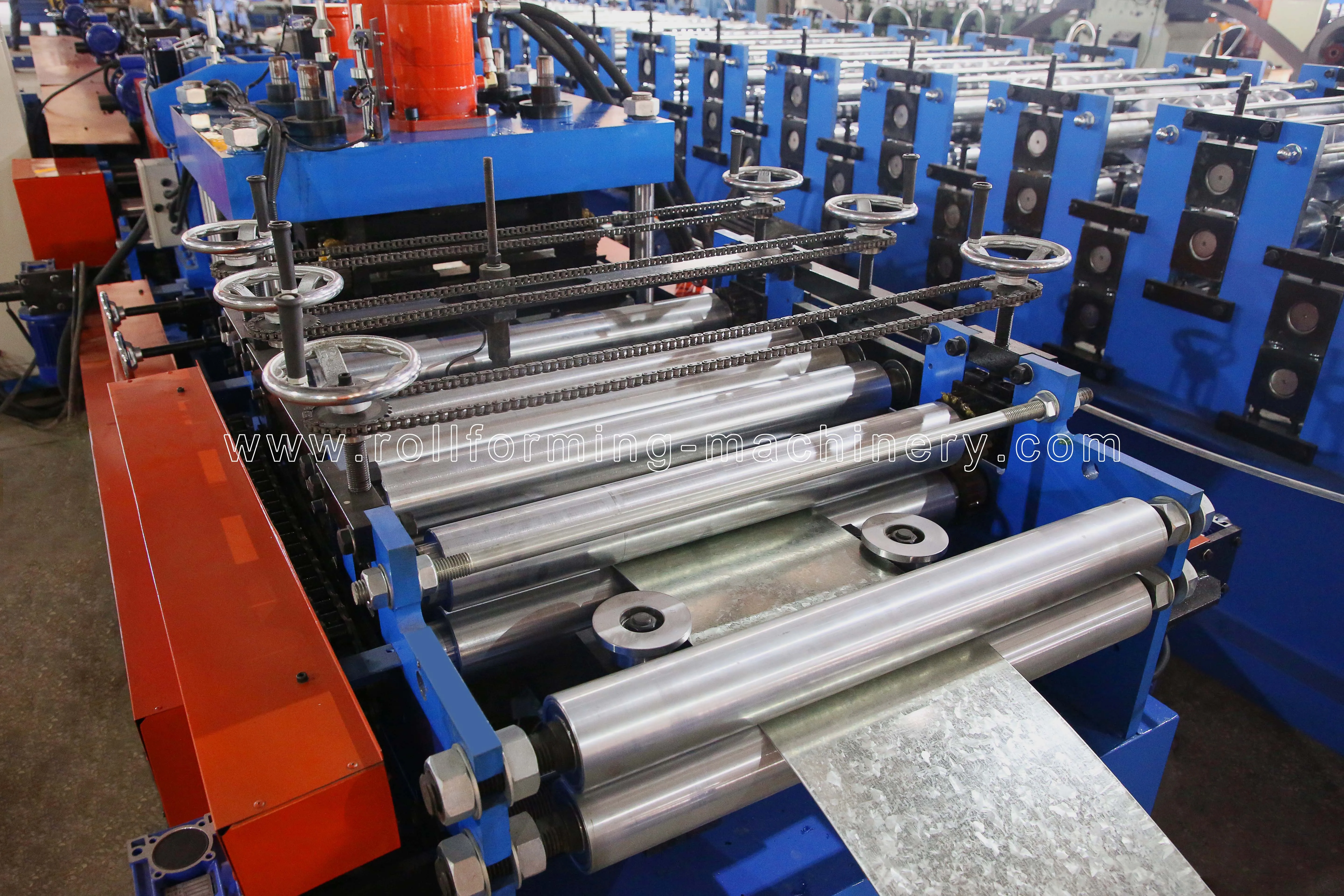

	Roller station	19-22 to form
	Shaft diameter	75mm-80mm-90mm-100mm
	Machine size	1000012001800mm
	Machine weight	10-15tons
	Machine color	2.Blue(RAL5015)+ orange (RAL2004), as per the seller factory’s color standard
	Working speed	15m/min-30m/min

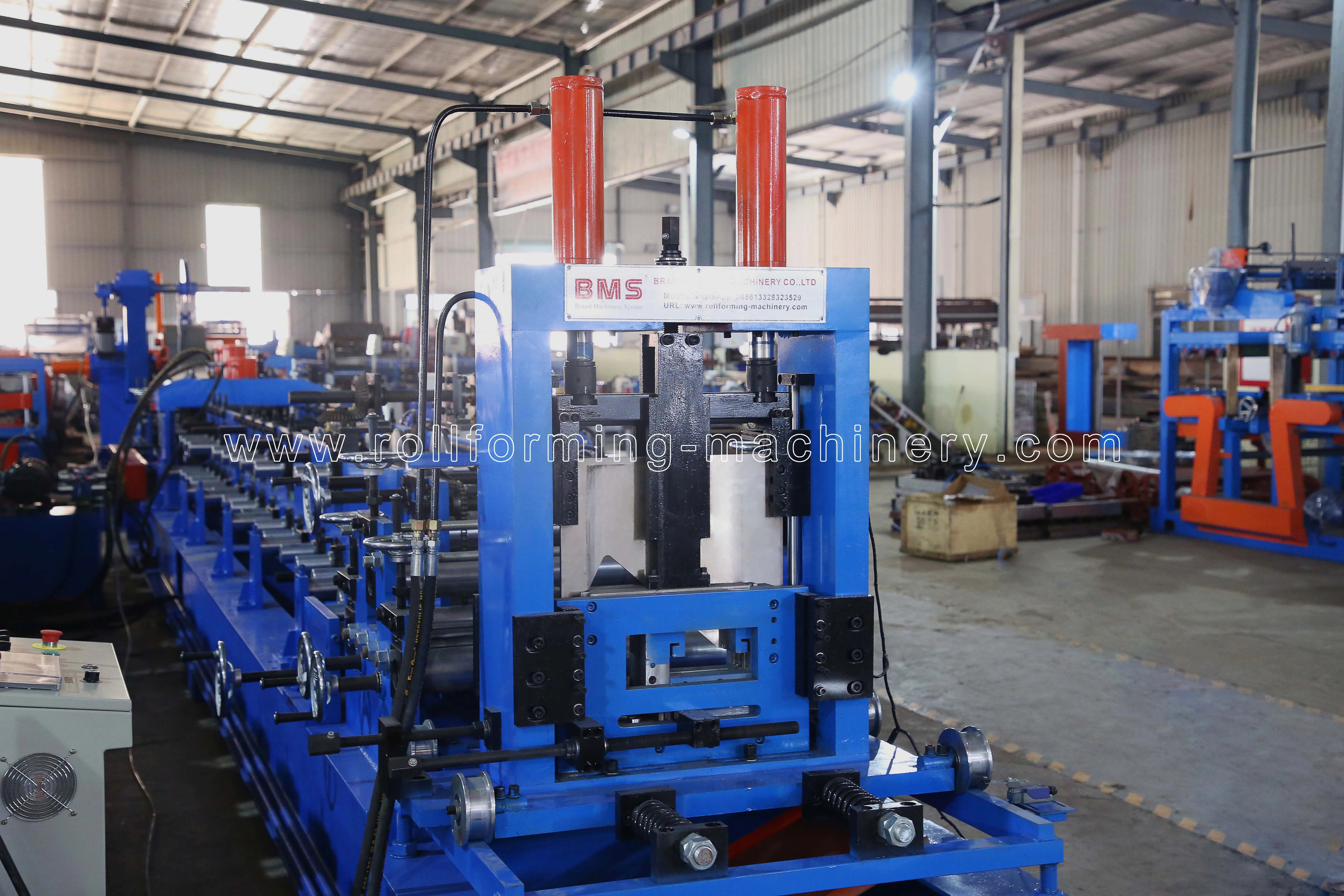

Cutter	Hardness	Heat treatment to HRC58-62 degree
	Cutting tolerance	≤±1mm
	Material	Cr12MoV(= Z200C12 with at least one million times of cutting life)
	Operate	By PLC
Power	Driving way	Gear/Sprocket transmission,

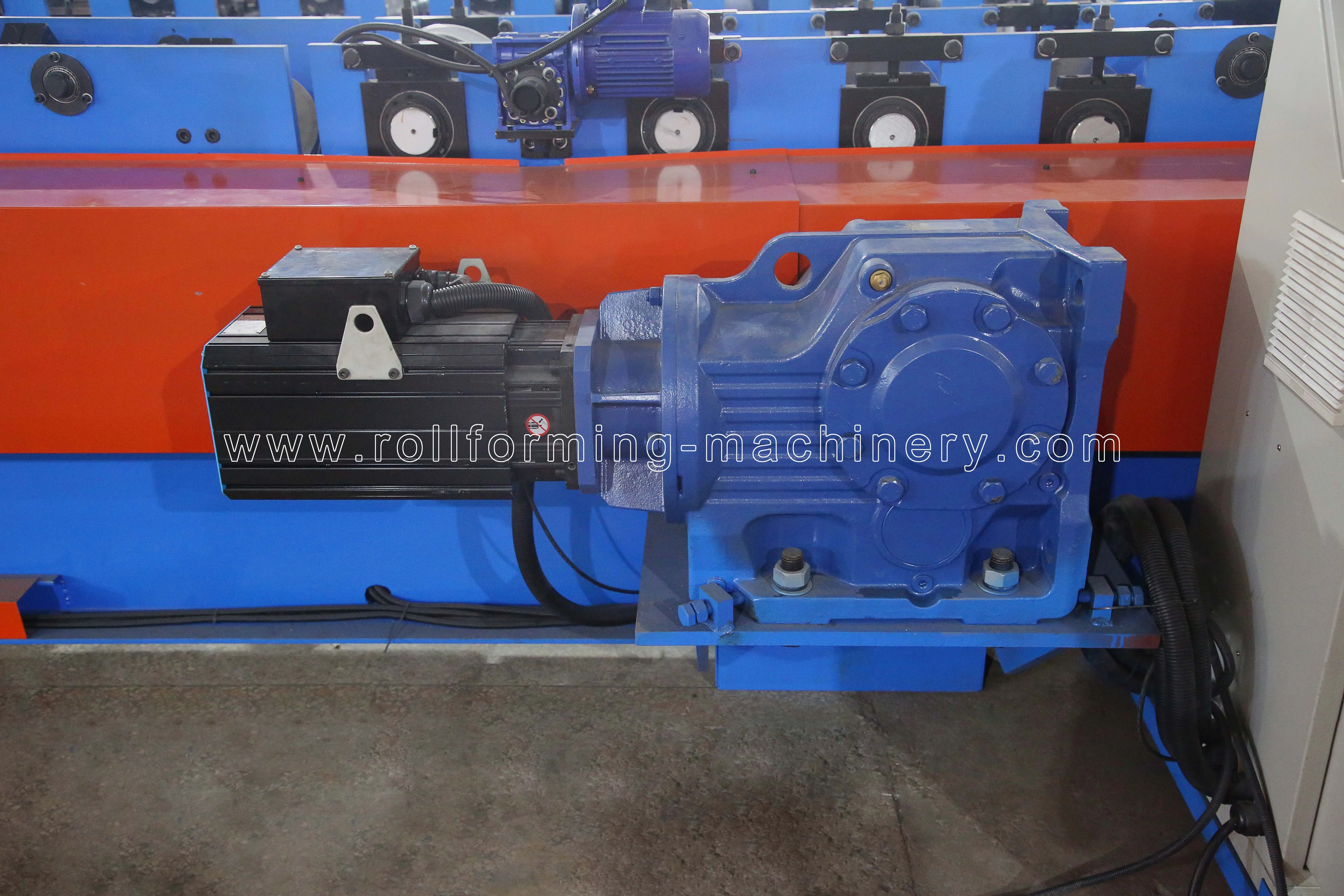

	Main motor	15-18.5-22KW
	Pump motor for cutter	5.5kw-7.5kw
	Voltage	220/380/415/480V- 60/50Hz/3Ph --should be confirmed
PLC Control System	Inverter	Schneider Electric/Siemens/DELTA (Taiwan brand)
	Touch screen	Schneider Electric/Siemens/WEINVIEW(Taiwan brand)
	Encoder	OMRON (Japan brand) or KOYO (Japan brand)
	Cut-to-length tolerance	≤±1mm
	Control voltage	24V

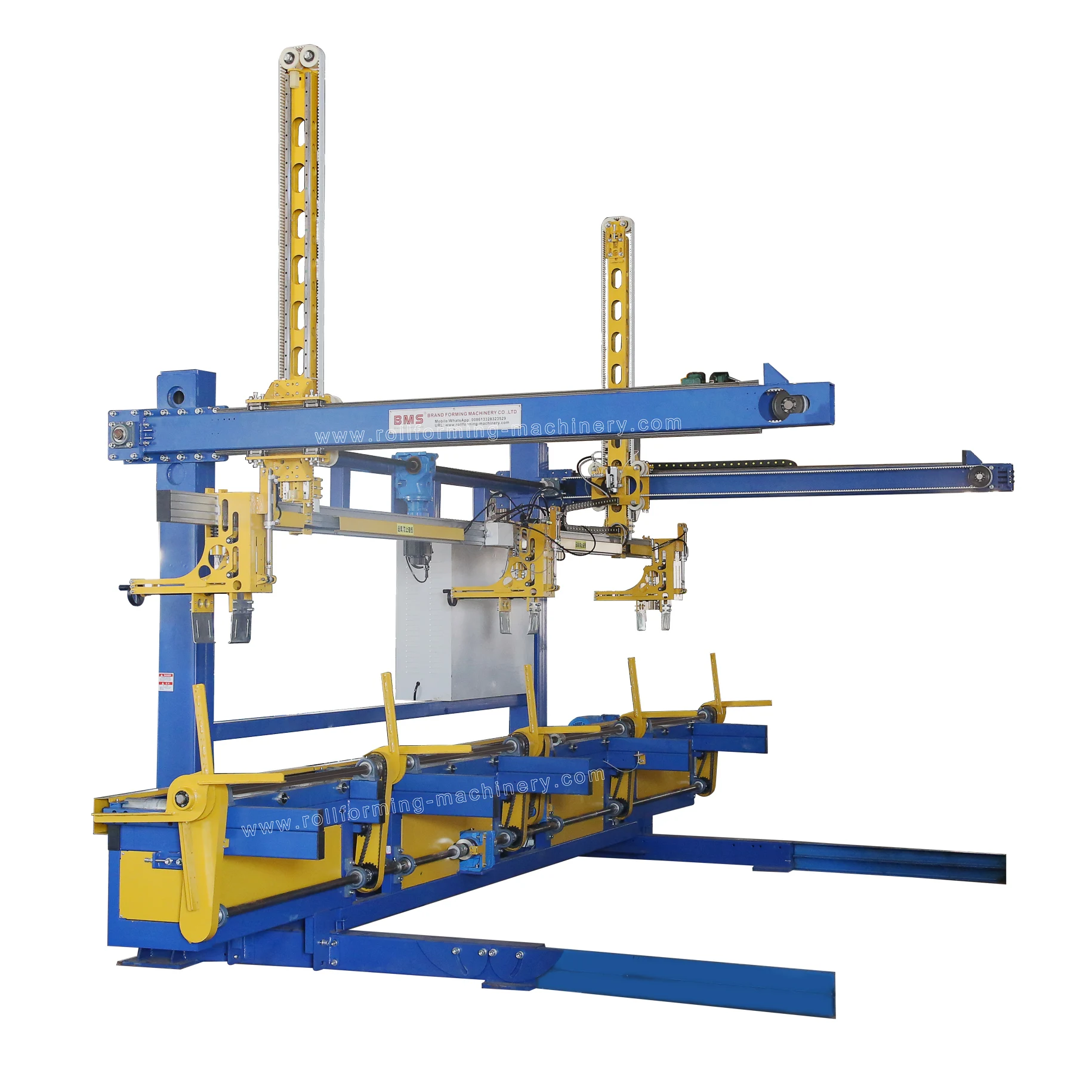

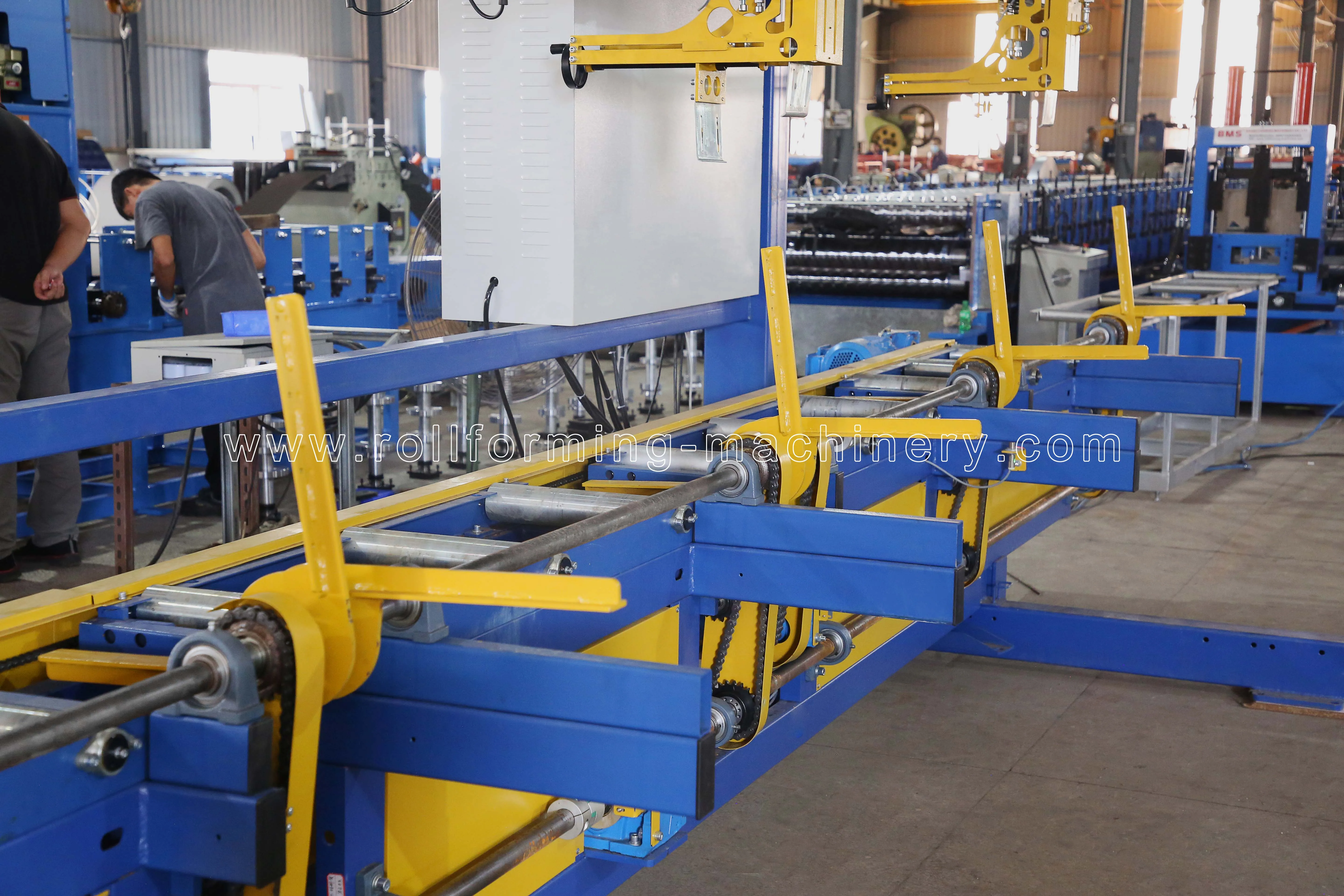

Automatic Stacker and Printer		Options
